Cảm biến áp suất Festo SDE5-D2-C2-Q6-P-M8-G 529027
Giá: Liên Hệ

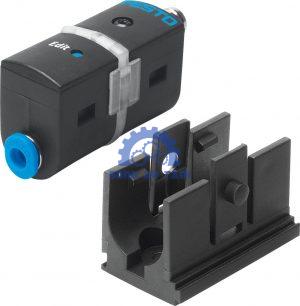

Pressure sensor SDE5-D2-C2-Q6-P-M8-G 529027
| Product description | Main applications | Key features | |
| The pressure sensor SDE5 is a cost-effective alternative for quick and easy | The pressure sensor SDE5 can be used | • Selectable output functions | • Relative pressure or differential |
| pressure monitoring. | wherever simple sensing of the actual | • Teach-in function for programming | pressure measurement |
| The “intelligent fitting” delivers instant | pressure is required: | • Minimal assembly times thanks to | • 5 pressure measuring ranges: |
| information about the actual pressure | • Compressed air monitoring | QS connections and linkable wall | 0 … –1, –1 … 1, 0 … 2, 0 … 6, |
| and is an equally effective device for | • Regulator monitoring | brackets | 0 … 10 bar |
| object detection via back pressure as it | • Confirmation of suction in vacuum | • Quick switching-point adjustment at | • Analogue output 0 … 10 V |
| is for pressure, regulation and vacuum | technology | the touch of a button | • Electrical outputs: 1 switching |
| detection. | • Object detection via back pressure | • Switching status indication by an | output PNP or NPN |
| LED visible from all sides |
